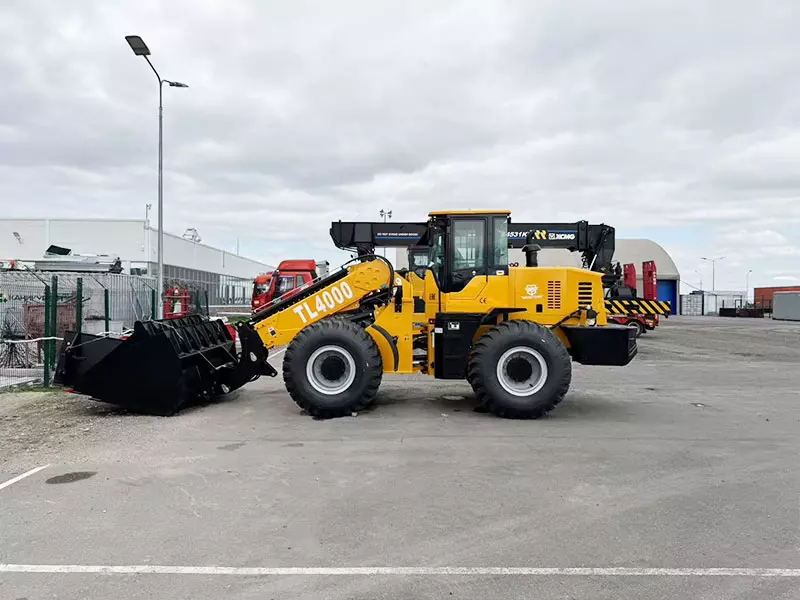

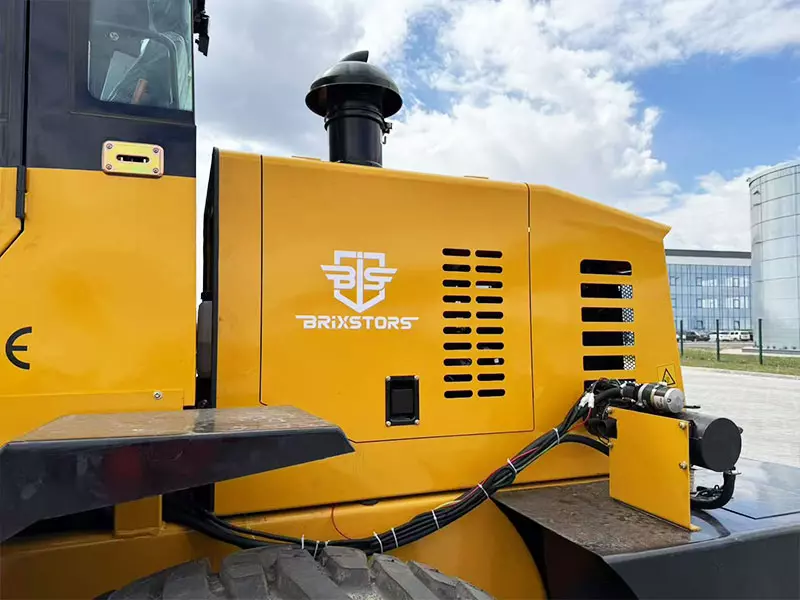

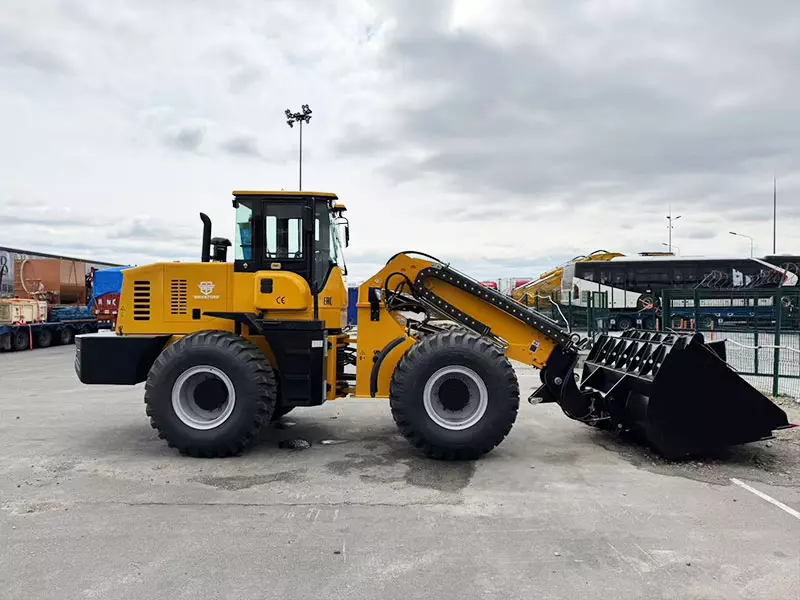

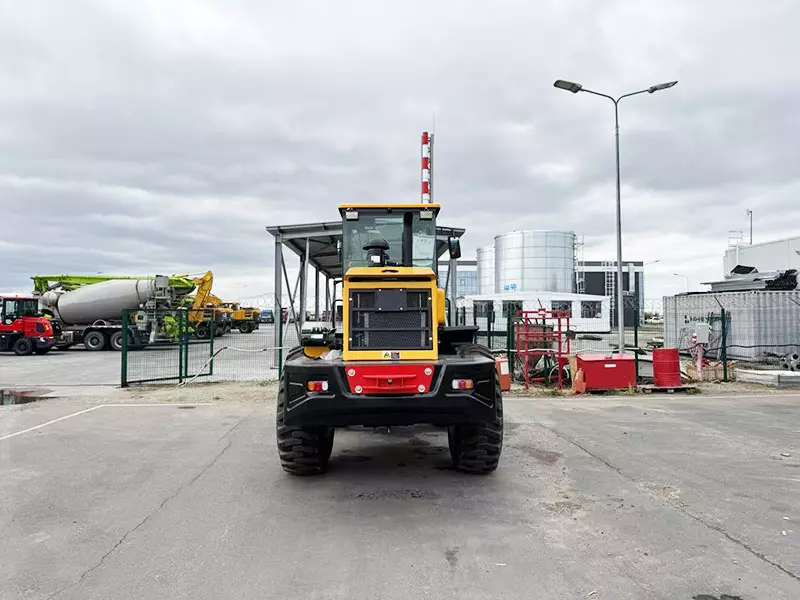

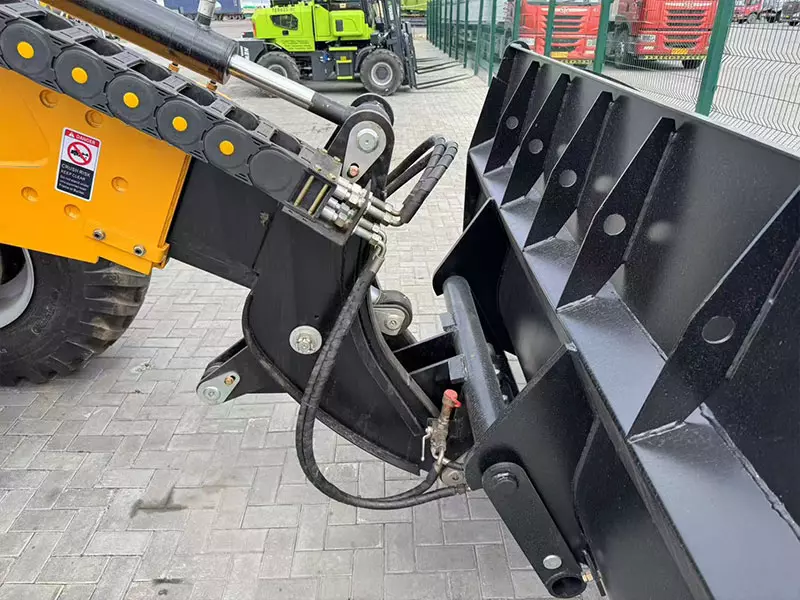

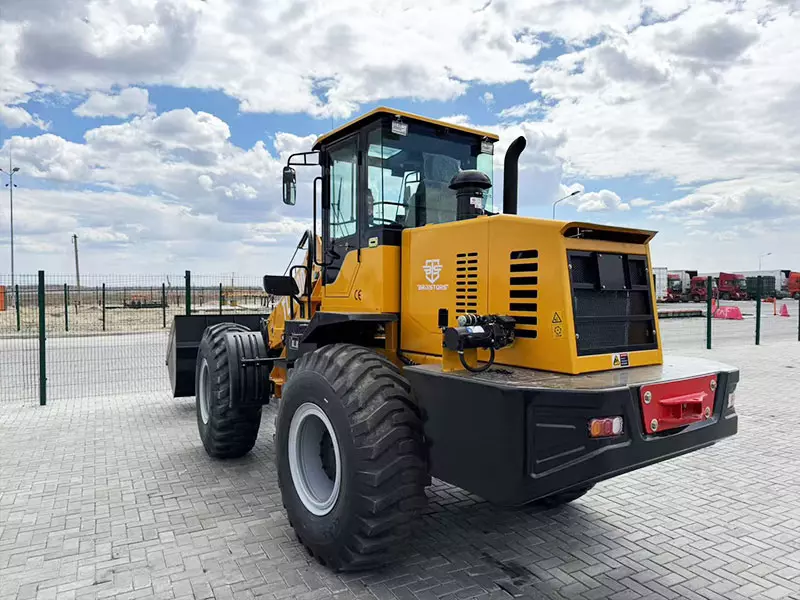

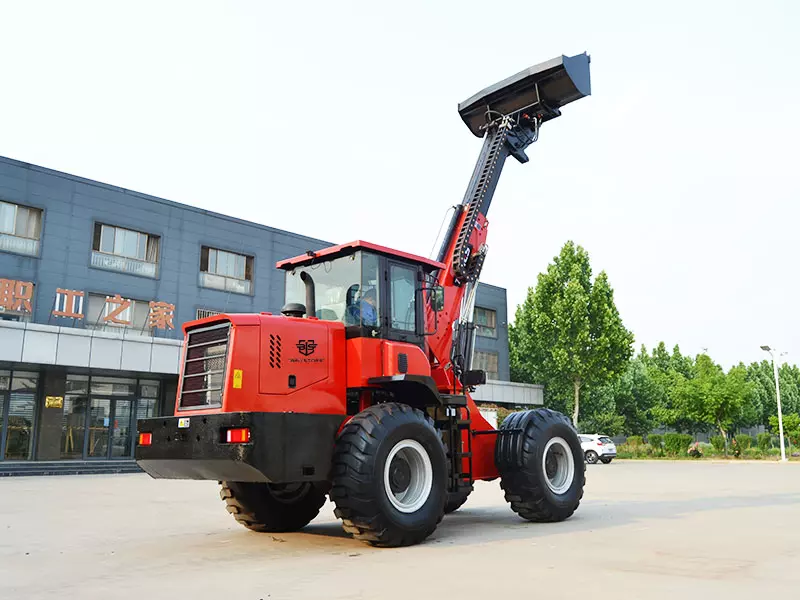

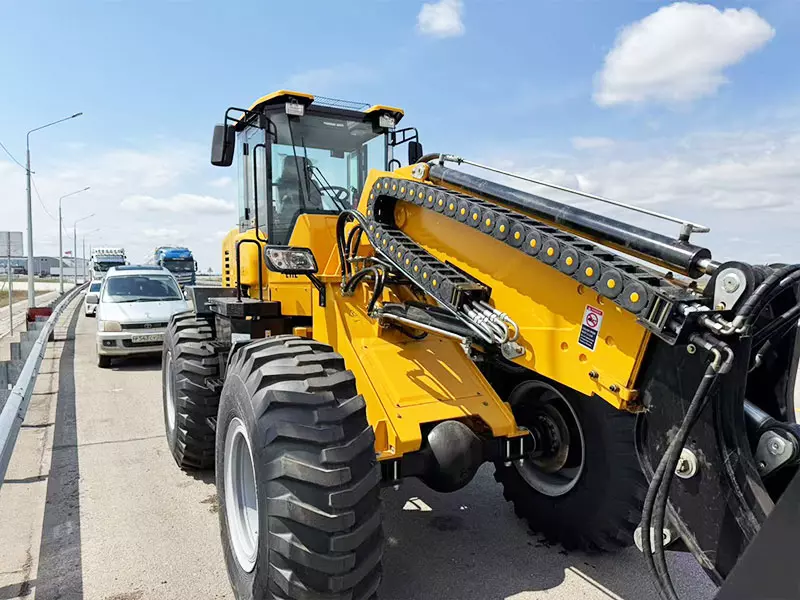

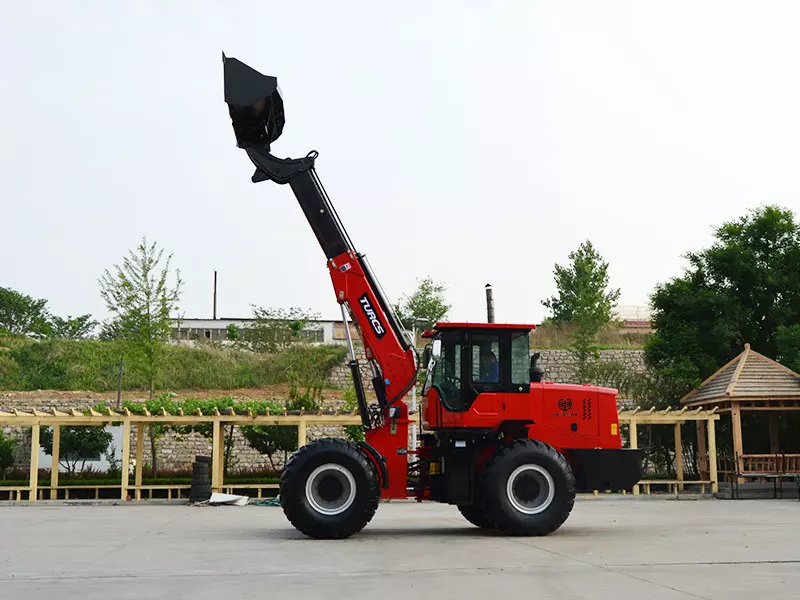

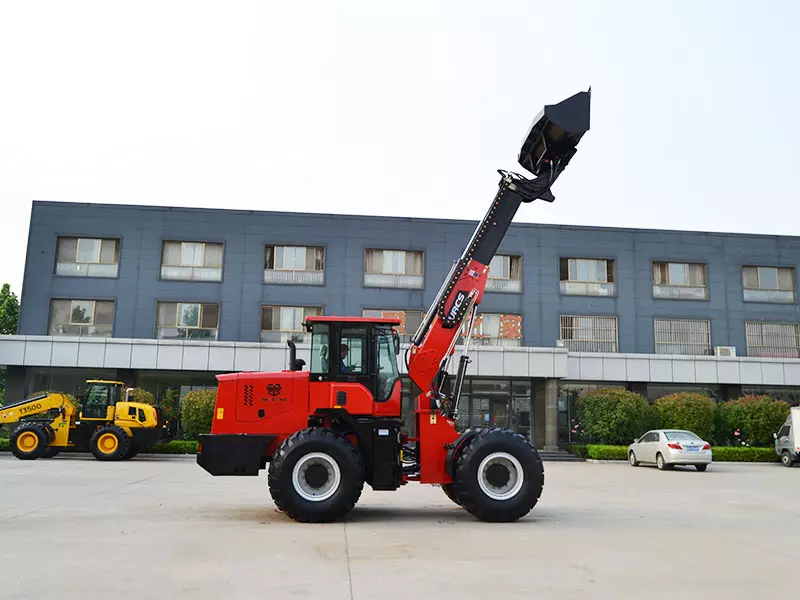

TL4000 BRIXTORS Telescopic loader
Category:
Key words:
TL4000 BRIXTORS Telescopic loader
Product Details

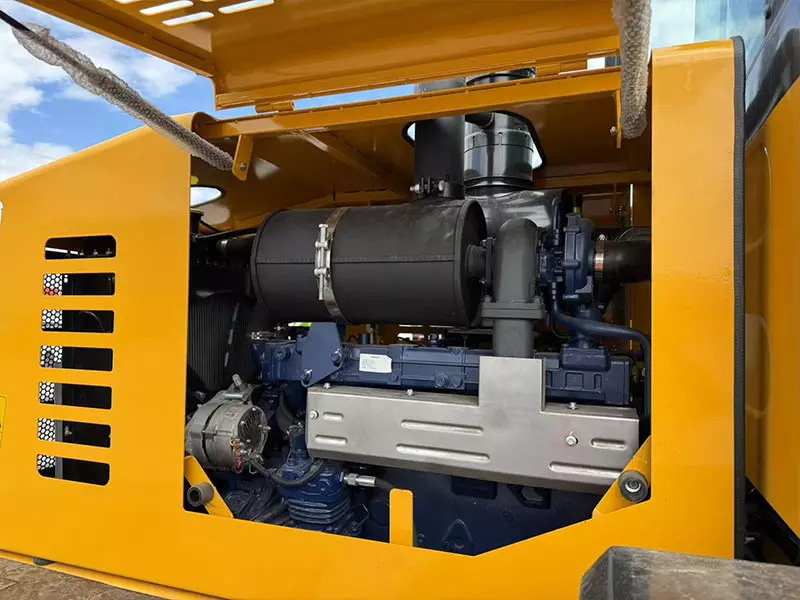

| Engine Details | Engine Brand/Model | WEICHAI/ WP6G175E22 |
| Engine power | 129KW | |
| Number of cylinders | 6 | |
| Cooling way | Water cooling | |
| Engine type | Electronic Unit Injector Engine | |
| Optional engine | 6BT5.9-C150 CUMMINS EPA4/EURO5 FPT EPA4 CUMMINS | |
| Bucket | Bucket Capacity | 1.7m³ |
| Bucket width | 2300mm | |
| Bucket type | Heavy-duty teeth | |
| Overall Dimensions | Overall Length | 7800mm |
| Overall Height | 3230mm | |
| Overall Width | 2300mm | |
| Max. Discharge height | 5400mm | |
| Min. Discharge height | 4000mm | |
| Optional Max. discharge height | 7000mm 9100mm (Must have legs and three arms) | |
| Tyre | Model | G2 pattern 20.5-25 Tyre |
| Size | Width: 520mm Diameter: 1490mm | |
| Transmission System | Hydraulic converter + gearbox + drive shaft + hub reduction axles | |
| Brake System | Service Brake | Four Wheel Disk brake |
| Parking Brake | Hand operated | |
| Braking Type | Air Brake | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Hydraulic quick release | Yes | |
| Hydraulic pilot joystick | Yes | |
| Steady rise | Yes | |
| Max. Load | 4000kg including bucket or attachment | |
| Wheelbase | 2845mm | |
| Track | 1825mm | |
| Speed | 0-38km/H | |
| Weight | 10000kg(with bucket) | |
| System Pressure | 19Mpa | |
| Hydraulic Output | 184L/min | |
| Fuel Tank Capacity | 175L | |
| Hydraulic Tank Capacity | 175L | |
