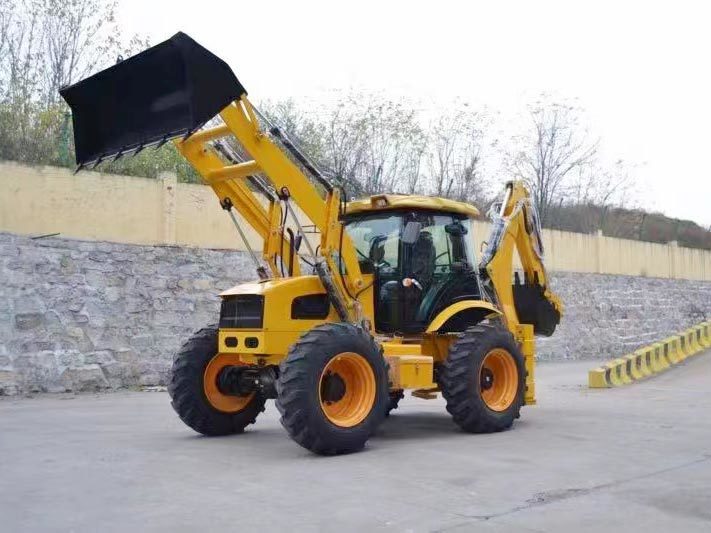

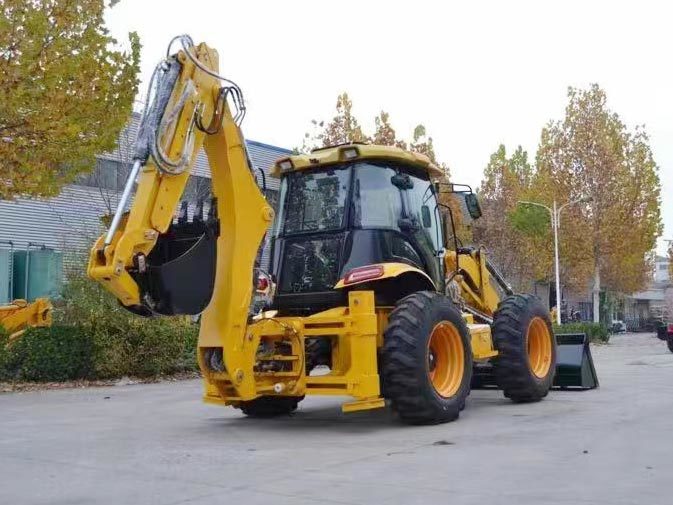

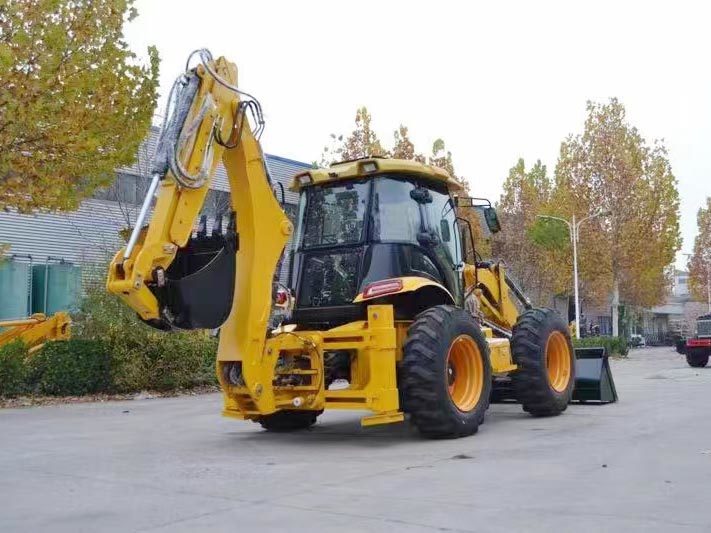

FST45-35 Backhoe Loader (Busy at Both Ends)
Specializing in the development, manufacturing, sales, and service of construction machinery and sanitation machinery equipment.
Category:
Key words:
Product Details
Overall Dimension Total Size | ||
1 | Length(with bucket on ground)Total Length of the Machine (Bucket on Ground) | 6450±80mm |
2 | Overall width（at stabilizer ）Total Width of the Machine (Tire Outer Edge) | 2490±10mm |
3 | Load Bucket widthBucket Width | 2490±10mm |
4 | Height(To the top of the cab)Total Height of the Machine (To the Top of the Cab) | 3120±10mm |
5 | Height(To the top of the digging pole)Total Height of the Machine (To the Top of the Digging Arm) | 3940 ±20mm |
6 | Wheel baseWheelbase | 2335±10 mm |
7 | Back wheel TreadWheel Tread | 2139 ±10mm |
Main Loading Technical SpecificationMain Loading Technical Specifications | ||
1 | Rated load（Rated Load） | 2500KG |
2 | Operating weight（Operating Weight） | 9200kg |
3 | Rated bucket capacity（Rated Bucket Capacity） | 1.2m³ |
4 | Max. dump clearance（Maximum Dump Height） | 3050±50 mm |
5 | Dump reach（Dump Reach） | 870±20 mm |
6 | Outside of bucketTurning Radius (Bucket Outer Edge) | 6420±100mm |
Main Digging Technical SpecificationMain Digging Technical Specifications | ||
1 | Rated digging bucket capacity（Rated Digging Bucket Capacity） | 0.35m³ |
2 | Max. digging depth（Maximum Digging Depth） | 3820±20 mm |
3 | Max. digging radius（Maximum Digging Radius） | 5345±20mm |
4 | Max. dumping height（Maximum Dumping Height） | 3740±20mm |
5 | Max. digging force（Maximum Digging Force） | kgf |
6 | Max. Digging HeightMaximum Digging Height | 5470 ±20mm |
Diesel engineEngine | ||
1 | Model（Model） | YCD4J22T-115 |
2 | Type（Type） | Water cooling |
3 | Rated output（Rated Output） | 85kw |
4 | Total exhaust of cylinder （Displacement） | 4.6L |
5 | Rated speed（Rated Speed） | 2200(r/min) |
6 | Size of tire（Tire Size） | 16.9-28 |
Oil CapacityOil Capacity | ||
1 | The hydraulic oil tank（Hydraulic Oil Tank） | 125 |
2 | Diesel fuel tank（Diesel Tank） | 125 |
Note: The above parameters or configurations are subject to change without notice.
Theparametersorconfigurationaresubjecttochangewithoutnotice.
